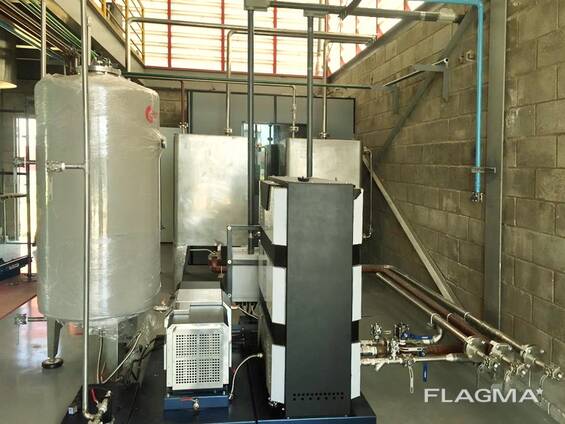

Biodiesel Plant, 2-5 tons/day (Semi-automatic), Raw material: any vegetable oil

CTS Biodiesel Plant, 2-5 tons/day (Semi-automatic), any vegetable oil as feedstock

High-quality equipment from one of the best European manufacturers. Reliable, high-tech, and reasonably priced, significantly lower than competitors.

CTS equipment, 2-5 tons per shift, for producing biodiesel from any vegetable oil—sunflower, rapeseed, cottonseed, coconut, etc.

Unlike companies producing biodiesel production equipment based on old, "barrel" technologies from the last century, our company utilizes the principle of high-frequency magnetic pulse cavitation, a technology previously used in classified technologies, which offers significant advantages:

Undemanding feedstock oil quality
High-frequency magnetic pulse cavitation reactors operate successfully and reliably with both crude and refined oils, as well as all types of animal fats and their blends with vegetable oils. These include sunflower, rapeseed, flaxseed, palm, mustard, and other oils, with virtually any acidity level, as well as waste oils from restaurants and bakeries, and beef, pork, and chicken fats—waste from livestock and poultry processing plants.

Single-pass reaction
Magnetic pulse cavitation technology eliminates the need for a second transesterification reaction, as with older "barrel" technologies.
The time it takes to produce finished biodiesel is reduced by 8-10 times.
No need for sorbent cleaning, washing, or drying of the biodiesel.
Minimal amounts of alcohol and catalyst. No alcohol recovery.

Cavitation processing eliminates the need to heat the oil, resulting in energy savings of 5-7 times.

Low-temperature reaction at room temperature. High-frequency magnetic pulse cavitation treatment in the reactor occurs at the molecular level. All components are exposed to magnetically directed cavitation pulses.
The minimum module dimensions are 5-10 times smaller than traditional systems with similar capacity.

Biodiesel from vegetable oil.

BNR 500S Unit (500 liters per hour) Semiautomatic

The BNR 500S automatic system consists of:

PPS-CT 1200: Electronic system for pre-dosing and processing of feedstock.
ROTON-B 15 - Magnetic pulse reactor for the BNR 500.
Automatic control system (electrical cabinet, PLC, PC, software, etc.)
Pipes, fittings, etc.
Separation system:
6.1. Separation tank, sensors, pump, valves, etc.

7.2. Electronic monitoring system for filling, separation, and unloading of finished products

Technical specifications:

Capacity, liters per hour: 500

Rated power, kW: 16

Weight (approximately), kg: 800

Degree of automation: semiautomatic

Operation mode: continuous

Processing capacity, kWh/liter (max.): 0.028

Capacity adjustment: yes

Footage occupied by one module, m2: 3.0

Dimensions (L x W x H), mm: 2250 x 1390 x 161

For BioST production, we partner only with reliable and well-known global suppliers such as Grundfos, Siemens, Schneider Electric, Moeller, Fanuc, and others.

All BioST mechanisms are ATEX certified, ensuring safe operation of the unit with liquids such as methanol and catalyst.

BioST are designed for continuous operation for 24 hours and do not require special maintenance.
